The XDi-N extends the functionality of the standard XDi display, by providing the ability to toggle between up to 4 different screens either remotely or physically through buttons on the front, making it an even more cost effective and space saving solution. Additionally, the XDi-N introduces an extra NX2 NMEA extension module which has NMEA inputs as well as outputs, expanding the functionality of the XDi-N to allow a complete out-of-the-box wind measuring solution using DEIF’s WSS 550/750 wind sensors for wind/weather applications and as a supplementary display for DEIF’s WAU 100 Wind Alarm System.
For integration into navigation applications such as compass systems, DEIF also offers the XDi-N Navigation variant.

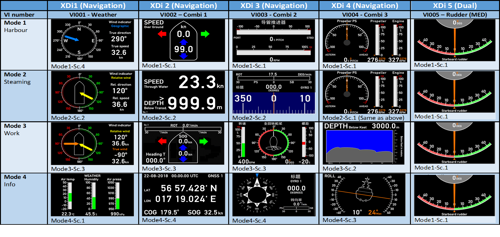

Different working modes such as Harbour Manoeuvres, Steaming and modes specific to the vessel type, often require different information to be displayed on screens. With multiple XDi-Ns, these working modes can be defined across multiple devices so each XDi-N can present a relevant screen for each working mode; yet another space and time saving feature.
Starting with a simple relative wind indication, the Wind and Weather libraries also support the necessary speed, heading and compass information to allow for more advanced indications such as true and geographic wind indications. The standard Wind and Weather libraries include:
- Wind
Examples: standard wind indicators for relative, true and geographic true, and alarm outputs
Alarm relay output option via DX Extension module - Wind and weather
Examples include wind, air temp, humidity and pressure.
As with the standard XDi, to meet specific application or branding needs or to facilitate harmonised designs, DEIF offers a highly cost effective and fast custom XDi library design service, also pre-MED approved where applicable.
To simplify ordering for DEIF’s popular standard wind systems, two XDi-N variants are available, preconfigured with the Wind library:
- XDi-N main wind indicator
- The XDi-N main wind indicator is delivered with one NX2 NMEA input/output (I/O) for connection to a wind sensor
- XDi-N wind repeater
- The XDi-N repeater wind indicator (for example for aft applications) has the same functions as the main unit but receives data from the main unit via CAN bus (XDi-net)
For more inspiration, see DEIF’s Wind Application Note.
Product videos
Products
XDi – performance type
XDi Introduction
XDi - Input possibilities
Tutorials
How to configure the XDi Rudder calibration
How to configure the XDi dimmer
How to disable the XDi set points
How to change the XDi Headlines
Display com Indicadores Flexíveis XDi
- Leva o desempenho do indicador um nível mais elevado
- Reduz drasticamente as versões e inventário de indicadores
- Prazo de entrega incomparável
- optimiza a utilização do espaço do painel
- XDi-Net - um atalho para o CANbus
- Reduz o cabeamento e a instalação
- Reparos instantâneos a bordo
- MED e outras aprovações de classe pertinentes
Flexible display indicator for navigation applications XDi-N (navigation)
- TFT graphical LED 3.5, 5 or 7" display
- Two CAN ports with CANopen and XDi-net
- Redundant power inputs
- XDi-Net – add multiple XDi indicators
- Up to six NMEA inputs & up to four outputs
- NMEA data offset and averaging functions
- Dimmer controllable using front/external pushbuttons, analogue, NMEA or CAN/XDi-net.
- 3 level priority data fall-back function
- True wind data calculation
- Calculate magnetic or true heading
- XDi-net group dimmer and day/night colour shift
- Toggle between up to four predefined indicator screens using the mode function
- Quick-switch between measuring units either locally or for the entire system
- Customised indicator designs available on request
- Standard day and night designs, dusk on request
- Optional analogue or digital inputs
- Optional warning and alarms/relay output
- MED and other relevant class approvals
Panorama rudder indicator TRI-2
Rudder indicator - Features
The rudder indicator from DEIF has a long list of features:
- Analogue input
- 3 extra large, easy-to-read scales
- Readable from up to 5 meters
- Black or white scales
- Long-life LED illumination
- Built-in dimmer
- Analogue interface or CAN
- MED approved scales where applicable
Rudder angle transmitter RTA & RTC
- Analogue.
- 2 wire 4 to 20 mA DC.
- Ø19mm stainless steel shaft for direct rudder connection.
- Available with 90 ° mounting bracket
- Directly compatible with DEIF’s RT-2 rudder angle transmitter.
- Suitable for rudder, azimuth and pitch angle
- “No touch” magnetic angle detection – no wear & tear
- Accuracy < 0.25 °
- Analogue or CAN bus output for direct connection of one or more indicators
- Angle position range from +/- 20 ° to +/-180 °
- Continuous shaft rotation
- Clockwise/counterclockwise, zero set & max./min. adjustment
- MED approved
- CAN with 16 bit resolution (+/-180 degrees = +/-32767)
Wind sensor WSS 550
Wind measuring instrument - WSS 550 - features
The wind measuring instrument from DEIF has a long list of features:
- Measures wind speed and direction
- IP66 housing
- Intelligent heating prevents icing up
- Working temperature down to -40 °C
- Well-proven and robust technology
- Advanced system integration with XDi-N
- Plug’n’play replacement for WSS/WSS-L
- Fully compatible with WSDI-2 indicators
- DNV GL approved
Anemômetros WSS 750
- Totalmente feito em aço inoxidável
- Transdutores de ultrassônicos de alta potência agrupados em formação triangular com laterais do mesmo tamanho
- Sem peças móveis; nenhum desgaste
- Ventos de até 65 m/s (120 nós) de velocidade
- Precisão de velocidade melhor que 3% (min. + /-0,2m/s)
- Precisão de direção melhor que + /-2 graus
- Protocolo NMEA (Associação Nacional de EletrônicaMarítima) [National Marine Electronics Association]
- Totalmente à prova d’água, IP66 e IP 67
- WSS 700 sem aquecimento
- WSS 750 com aquecimento
- Controle automático de potência e ganho - aumento automático de força do sinal em casa de chuva ou neve
Touch screen wind alarm system WAU 100
Wind alarm system WAU 100 - Features
The wind alarm by DEIF has a list of many features:
- NMEA0183 input
- 1 channel for MWV (wind)
- 1 channel for UTC time (ZDA or RMC)
- Easy installation, simple wiring
- Touch screen
- Wind data and alarm are logged
